48" Custom Hood Liner

Model: UVL6048JSS

Model: UVL6048JSS

Appliance Color

Stainless Steel

Stainless Steel with Matching Hardware

Additional Hardware Kit
Personalize your appliance with optional handle and knob accessory kits.
Already have the appliance? Shop Compatible Hardware Kits

Key Features

Offers

OR

Temporarily out of stock
Provide your ZIP Code to check availability in your area.

Earliest Estimated Standard Delivery (FREE) :

Order in the next: Hrs Mins Secs

Select date at Checkout | Deliver to

Earliest Estimated Standard Delivery (FREE) :

Earliest Estimated Express Delivery () :

Order in the next: Hrs Mins Secs

Select date at Checkout | Deliver to

Additional services

Select these at checkout
Delivery Services Learn More
Protection Plan (Optional)
Whirlpool Canada provides Certified Care Extended Service Plans, designed to maximize the value of your trusted appliances. A Certified Care Service Plan offers comprehensive protection for your investment, delivering peace of mind. Benefits include:
  • No out of pocket repair costs
  • Serviced by our network of Whirlpool Certified Technicians
  • Repair or Replace* Assurance
  • Comprehensive Functional Coverage
  • Manufacturer Certified Parts
Flexible Appliance Protection Plans, offered by Domestic & General Terms and Conditions
Limited Standard Warranty - Included,
Compatible Accessories
Frequently bought together
1170 CFM internal blower
1170 CFM internal blower

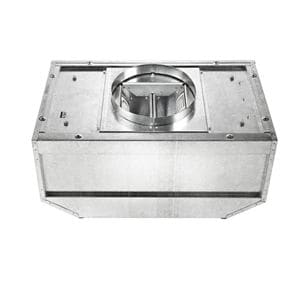

1200 CFM in-line blower
1200 CFM in-line blower

Overview

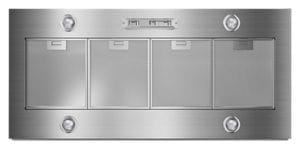

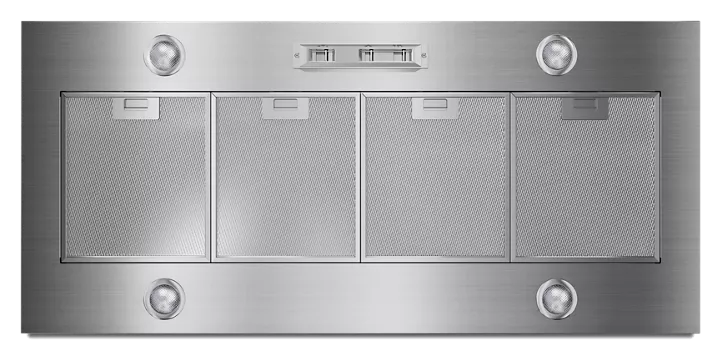

48" Custom Hood Liner

This custom hood liner features a hidden ventilation system mounted to the inside of a custom vent cover (which can be made of metal, wood, plaster or tile), offering a uniquely streamlined look. Designed to work with larger cooking appliances, it also offers you a choice of motors for different levels of ventilation power.

Features

3-Speed Hidden Slide Control

Makes it easy to adjust fan speed while cooking and matches your kitchen style with a clean look.

585-1170 CFM Motor Class

provides powerful airflow to match the high performance of commercial-style ranges and rangetops. This hood can be installed with your choice of a 585 or 1170 CFM motor (sold separately).

105,000 BTU Rating

Pairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 105,000 BTU.

Four LED Lights with Night Light Setting

Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.

Removable Filters

Use multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.

KitchenAid® Custom Hood Liners

KitchenAid® Custom Hood Liners allow you to conceal ventilation within custom cabinetry or a decorative hood cover, creating a style all your own.

Additional Features

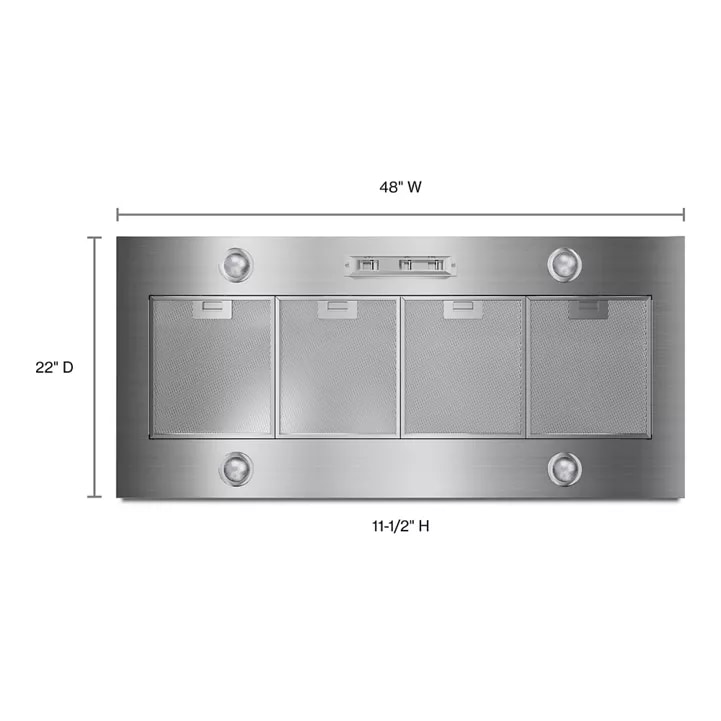

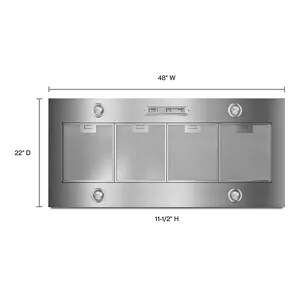

Specifications

Height:
29.21 centimeters
11-1/2 inches
29.21 cm
11-1/2 in
Width:
91.44 centimeters
36 inches
91.44 cm
36 in
Depth:
55.88 centimeters
22 inches
55.88 cm
22 in
Download Specs Sheet
Download Dimension Guide

Certifications

Energy Star Qualified

No

Energy Star® Qualified

No

Prop 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Star K Certified

No

Dimensions

Canopy Height

29.21 cm, 11-1/2 in

Common Size

121.92 cm, 48 in

Depth

55.88 cm, 22 in

Gross Weight

24.00 kg, 52-91/100 lbs

Height

29.21 cm, 11-1/2 in

Maximum Height

91.44 cm, 36 in

Minimum Height

76.20 cm, 30 in

Net Weight

15.20 kg, 33-51/100 lbs

Width

91.44 cm, 36 in

Ventilation Details

Auto Function

No

BTU Threshold

65K/105K

Damper Included

Yes

Duct Direction

Vertical

Duct Length

13

Duct Outlet Size

25.40 cm, 10 in

Duct Type

Round

Exhaust Vent Location

Top

Filters

Grease Filters

HVI (CFM HS Horizontal)

N/A

HVI (CFM HS Vertical)

510

Lighting Control Type

Slider

Night Light

No

Number of Night Light Settings

1

Task Light Type

LED

Task Lighting

Yes

Vent Fan Location

Side

Venting

Exterior

Controls

Control Location

Hidden

Control Type

Slide Controls

Details

Blower Type

Centrifugal

Hood Type

Under Cabinet

Electrical

Amps

3-18/25

Hz

60

Power Cord Included

No

Volts

120

Watts

446
